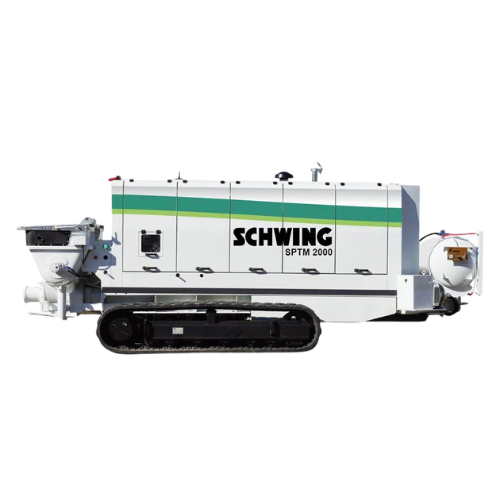

Schwing SPTM 2000 Trailer Pump | Tier 4 Final Engine | High-Performance Track-Mounted Concrete Pump
SKU SPTM-2000
by Schwing
Original price
$242,080.00
-
Original price
$242,080.00
Original price
$242,080.00
$242,080.00
-
$242,080.00
Current price
$242,080.00
The Schwing SPTM 2000 Trailer Pump combines high performance with advanced mobility, featuring a track-mounted rubber undercarriage for challenging terrain. Equipped with a Tier 4 Final CAT C4.4 173 hp engine and chrome-lined concrete cylinders, it ensures efficient and durable operation for large-scale concrete applications. Its integrated hydraulic water pump and expansive water tank add versatility for diverse job site requirements.
Disclaimer: Price includes the pump only. Optional accessories are available for customization.
Delivery time
Estimated Delivery Time 7-10 Business Days
Specifications
- Engine: Tier 4 Final C4.4 137hp at 2200 RPM
- Maximum Aggregate Size: 1.5 inches
- Pump Outlet: 5” HD
- Maximum Concrete Output: 70 cu yd/hr
- Maximum Pressure: 1,100 PSI
- Concrete Cylinder: Chrome-lined, 7” x 39”
- Hopper Capacity: UV8 HDPE with a durable grate assembly
- Hydraulic System: Open-loop twin circuit with accumulator
- Remote Control: 100’ cable and Scanreco radio remote
- Dimensions: 16' 5" L x 8' 6" H x 6' 4" W
- Weight: 9,300 lbs (without additional options)
Optional Add-Ons (Not Included in Base Price):
- Auto Greaser for Rock Valve - $2,900
- Extended Life High-Chrome Wear Parts - $580
- Hydraulic Oil Level Sensor (Electronic) - $300
- Hopper-Mounted Vibrator (12v) - $1,000
- Aluminum Diamond Plate Hopper Cover - $500
- Hydraulic Outrigger Legs - $3,200
- Protective Covers for Hydraulic Legs - $450
- Work Light (Hopper Cover Mount) - $400
- Shotcrete Setup - $150
- Emergency Hose & Fitting Kit - $940
