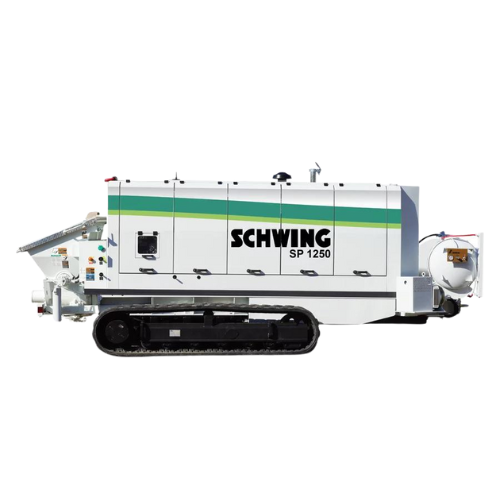

Schwing SPTM 1250 Trailer Pump | Tier 4 Final Engine | High-Performance Track-Mounted Concrete Pump

Engine: Tier 4 Final CAT C4.4 173 hp @ 2200 RPM (DEF required)
Maximum Concrete Output: 95 cu yd/hr (Piston)
Maximum Pressure: 942 PSI (Piston)
Concrete Cylinder: Chrome lined, 7” x 55”
Aggregate Size: Up to 1.5”
Water Tank: 150-gallon capacity (non-pressurized)
Water Pump: Hydraulic Hypro 7560, 22 gpm @ 150 PSI
Hopper Features: Grate with UV8 HDPE cover
Hydraulics: Twin circuit with accumulator
Fuel Tank Capacity: 53 gallons
Hydraulic Tank Capacity: 112 gallons
Weight: 17,500 lbs (standard configuration)
Dimensions (L x W x H): 21' 3” x 7' 10” x 8'

Optional Add-Ons:
Auto Greaser - Rock Valve: $2,900
Extended Life High-Chrome Wear Parts (Cutting Ring & Wear Plate): $580
Hopper Access Platform: $3,000
Hydraulic Oil Level Sensor (Low): $300
Hopper Cover - Aluminum Diamond Plate: $500
High-Pressure Water Pump with Spray Wand: $1,900
Work Light (Hopper Cover Mount): $400
Water Tank Heater: $1,600
Shotcrete Setup (150 bar Soft Switch & 1.3mm Nozzles): $150
Emergency Hose & Fittings Kit (PN 98494672): $1,360
