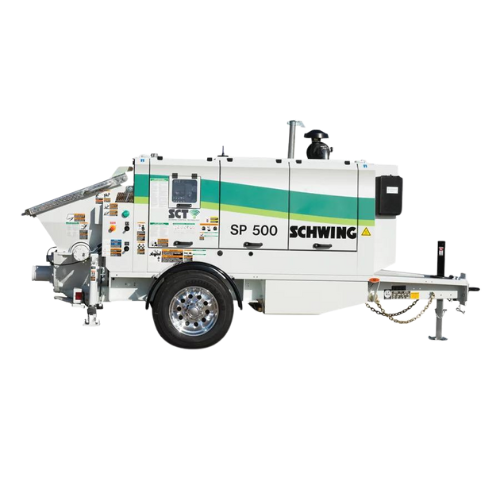

Side profile showcasing the 6” x 39” chrome-lined concrete cylinder and twin circuit hydraulics.

Schwing SP 500 Trailer Pump | Tier 4 Final Engine | Efficient and Lightweight Concrete Pump

$105,060.00 - $105,060.00
$105,060.00
$105,060.00 - $105,060.00
$105,060.00

Delivery time

Estimated Delivery Time 7-10 Business Days

The Schwing SP 500 Trailer Pump combines compact design with powerful performance, making it the ideal choice for small to medium-scale concrete applications. Featuring a Tier 4 Final / EU Stage V CAT C2.8B 74.5 hp engine and a durable 6” x 39” chrome-lined concrete cylinder, this pump ensures reliable and efficient operation. Its twin circuit hydraulic system and robust build are tailored for demanding environments requiring high efficiency.

Disclaimer: Price includes the pump only. Optional accessories are available for customization.



Specifications

Engine: Tier 4 Final / Stage V CAT C2.8B 74.5 hp @ 2200 RPM (No DEF required)
Maximum Concrete Output: 45 cu yd/hr (Piston)
Maximum Pressure: 1,100 PSI (Piston)
Concrete Cylinder: Chrome lined, 6” x 39”
Aggregate Size: Up to 1.5”
Hopper Features: Grate with UV8 HDPE cover
Hydraulics: Twin circuit with accumulator
Fuel Tank Capacity: 33.5 gallons
Hydraulic Tank Capacity: 53 gallons
Weight: 7,300 lbs (standard configuration)
Dimensions (L x W x H): 15' 6” x 6' 2” x 7' 4”

Optional Add-Ons:
Auto Greaser - Rock Valve: $2,900
Extended Life High-Chrome Wear Parts (Cutting Ring & Wear Plate): $530
Hydraulic Oil Level Sensor (Low): $300
Hopper-Mounted Vibrator (12v): $1,000
Aluminum Diamond Plate Hopper Cover: $500
Hydraulic Outrigger Legs: $3,200
Protective Covers for Hydraulic Outrigger Legs: $450
Tandem Axle Chassis with Tires: $2,300
Work Light (Hopper Cover Mount): $400
Shotcrete Setup (150 bar Soft Switch & 1.3mm Nozzles): $150
Emergency Hose & Fittings Kit (PN 98494214): $1,130
