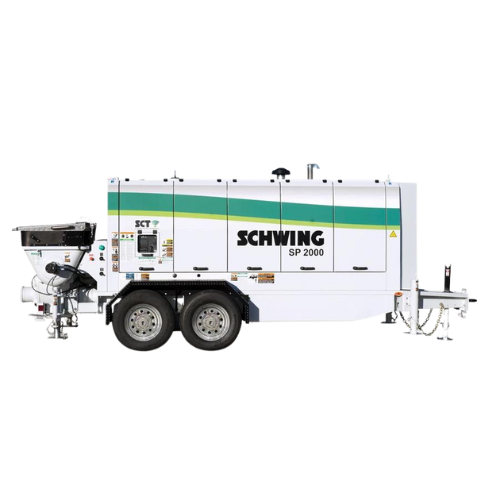

Side profile showcasing the tandem axle chassis and hopper assembly

Schwing SP 2000 Trailer Pump | Tier 4 Final Engine | High-Performance Concrete Pump

$177,160.00 - $177,160.00
$177,160.00
$177,160.00 - $177,160.00
$177,160.00

Delivery time

Estimated Delivery Time 7-10 Business Days

The Schwing SP 2000 Trailer Pump is engineered for high performance, offering unmatched efficiency for demanding concrete applications. Powered by a robust Tier 4 Final CAT C4.4 173 hp engine, it delivers reliable output and precision. Designed for versatility, it accommodates a maximum aggregate size of 2.5” and features an 8” x 63” chrome-lined concrete cylinder for extended durability. The SP 2000 is ideal for large-scale construction projects requiring consistent and high-output pumping.

Disclaimer: Price includes the pump only. Optional accessories are available for customization.

Specifications

Engine: Tier 4 Final CAT C4.4 173 hp @ 2200 RPM (DEF required)
Maximum Concrete Output: 118 cu yd/hr (Rod), 91 cu yd/hr (Piston)
Maximum Pressure: 1,568 PSI (Piston)
Concrete Cylinder: Chrome lined, 8” x 63”
Aggregate Size: Up to 2.5”
Hopper Capacity: Hopper with re-mixer assembly
Hydraulics: Single circuit with dual gear pump
Fuel Tank Capacity: 53 gallons
Hydraulic Tank Capacity: 112 gallons
Weight: 13,050 lbs (standard configuration)
Dimensions (L x W x H): 20' 1.5” x 6' 4” x 7' 11”

Optional Add-Ons:
Auto Greaser - Rock Valve: $3,100
Hydraulic Oil Level Sensor (Low): $300
Hopper-Mounted Vibrator (12v): $1,000
Hydraulic Outrigger Legs Protective Covers: $450
Work Light (Hopper Cover Mount): $400
Emergency Hose & Fittings Kit (PN 98487696): $2,800
