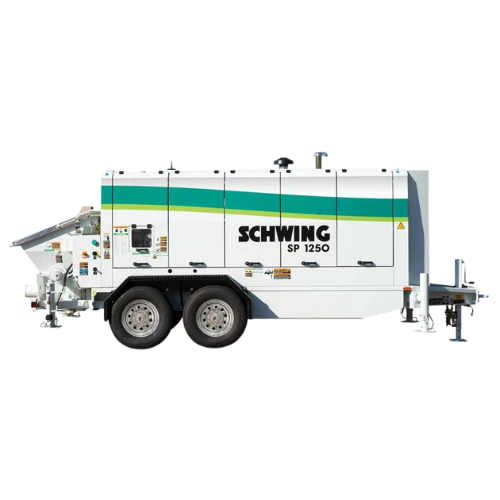

SP 1250

Product Description: High-Performance Concrete Pump
Experience the ultimate in concrete pumping performance with our state-of-the-art concrete pump. Designed for maximum efficiency and reliability, this pump is built to handle the toughest jobs with ease.

Specifications:

U.S. Measurements:
Concrete Output Per Hour: 95 cu yds
Maximum Pressure on Concrete: 942 psi
Maximum Aggregate Size: 1.5 in
Concrete Cylinder Diameter: 7 in
Concrete Cylinder Stroke Length: 55 in
Differential Piston/Rod Diameter: 3.15/2.16 in
Outlet Diameter: 5 in
Concrete Valve Type: Long Rock™
Shifting Cylinders: 2
Max. Pump Strokes Per Minute: 34
Volume Control: 0 to Maximum
Hydraulic System: Open Loop
Main Hydraulic Pump: A11VLO130
Hydraulic Pressure: 4785 psi
Hydraulic Tank Capacity: 112 gal
Engine Model – Diesel Tier 4 F: CAT C4.4
Engine Power: 173 hp
Fuel Tank Capacity: 53 gal
Hopper Capacity: 13 cu ft
Hopper Height: 51 in
Axle: Tandem Standard
Axle Capacity Rating: 14,000 lbs
Tandem Axle Tires: LT 235/85 R16 (std.)
Brakes: Electric
Outrigger Legs: Hydraulic Standard
Length: 20′ 1.5″
Width: 6′ 4″
Height: 7′ 11″
Unit Weight: 10,600 lbs
Remote Control Cable: 100 ft
Metric Measurements:
Concrete Output Per Hour: 73 cu m
Maximum Pressure on Concrete: 65 bar
Maximum Aggregate Size: 37 mm
Concrete Cylinder Diameter: 180 mm
Concrete Cylinder Stroke Length: 1400 mm
Differential Piston/Rod Diameter: 80/55 mm
Outlet Diameter: 125 mm
Hydraulic Pressure: 330 bar
Hydraulic Tank Capacity: 424 l
Engine Power: 129.5 kW
Fuel Tank Capacity: 200 l
Hopper Capacity: .38 cu m
Hopper Height: 1292 mm
Axle Capacity Rating: 6350 kg
Length: 6129 mm
Width: 1950 mm
Height: 2167 mm
Unit Weight: 4808 kg
Remote Control Cable: 30.5 m
Key Features:

High concrete output and pressure capabilities for efficient operation.
Long Rock™ concrete valve type for enhanced durability.
Dual shifting cylinders for smooth operation.
Variable volume control to suit different project requirements.
Robust hydraulic system with open loop design.
Powerful CAT C4.4 diesel engine, Tier 4 Final compliant.
Electric brakes and hydraulic outriggers for safety and stability.
Remote control cable for ease of operation.
Our concrete pump is engineered to provide superior performance and reliability, making it the ideal choice for your construction needs. Whether you're working on large-scale projects or smaller jobs, this pump is designed to meet your demands with precision and efficiency.

Note: Specifications are for standard units. Other units are available. Specifications are subject to change without prior notice.
