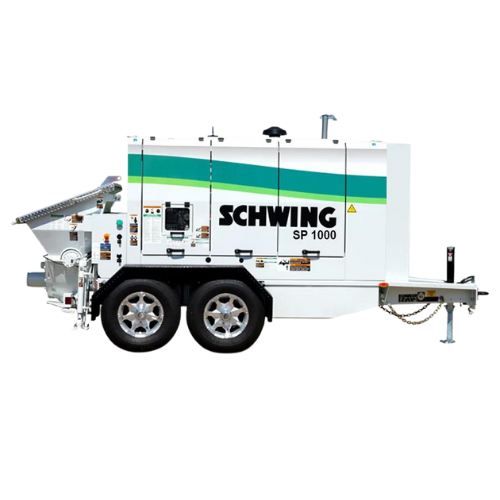

Schwing SP 1000 Trailer Pump | Tier 4 Final Diesel Engine | High-Performance Concrete Pump
The Schwing SP 1000 Trailer Pump is designed for reliability and performance in high-pressure concrete applications. Featuring a Tier 4 Final CAT C4.4 diesel engine with 137 horsepower, this pump delivers up to 70 cubic yards per hour with a maximum pressure of 1,100 PSI. Engineered with a robust Long Rock™ valve, chrome-lined concrete cylinders, and dual gear pumps, it ensures smooth operation for challenging construction projects. Its compact trailer-mounted design, with tandem axles and manual outriggers, provides easy portability and stability.
Disclaimer:
The listed price includes the base pump only. Optional add-ons are available for purchase and installation directly from the factory. Verify compatibility with your project requirements before purchase
Delivery time
Estimated Delivery Time 7-10 Business Days
Specifications
- Engine: Tier 4 Final C4.4 137hp at 2200 RPM
- Maximum Aggregate Size: 1.5 inches
- Pump Outlet: 5” HD
- Maximum Concrete Output: 70 cu yd/hr
- Maximum Pressure: 1,100 PSI
- Concrete Cylinder: Chrome-lined, 7” x 39”
- Hopper Capacity: UV8 HDPE with a durable grate assembly
- Hydraulic System: Open-loop twin circuit with accumulator
- Remote Control: 100’ cable and Scanreco radio remote
- Dimensions: 16' 5" L x 8' 6" H x 6' 4" W
- Weight: 9,300 lbs (without additional options)
Optional Add-Ons (Not Included in Base Price):
- Auto Greaser for Rock Valve - $2,900
- Extended Life High-Chrome Wear Parts - $580
- Hydraulic Oil Level Sensor (Electronic) - $300
- Hopper-Mounted Vibrator (12v) - $1,000
- Aluminum Diamond Plate Hopper Cover - $500
- Hydraulic Outrigger Legs - $3,200
- Protective Covers for Hydraulic Legs - $450
- Work Light (Hopper Cover Mount) - $400
- Shotcrete Setup - $150
- Emergency Hose & Fitting Kit - $940
