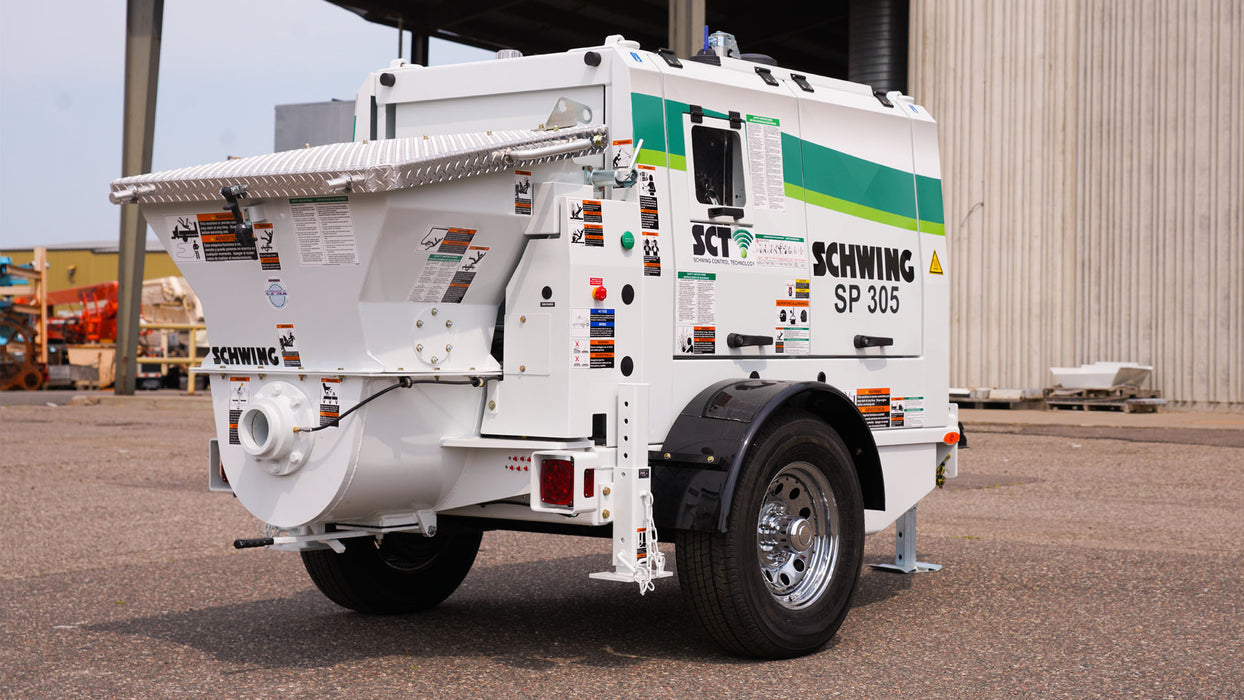

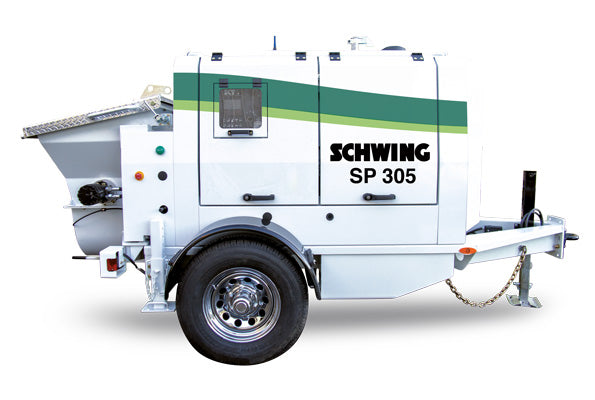

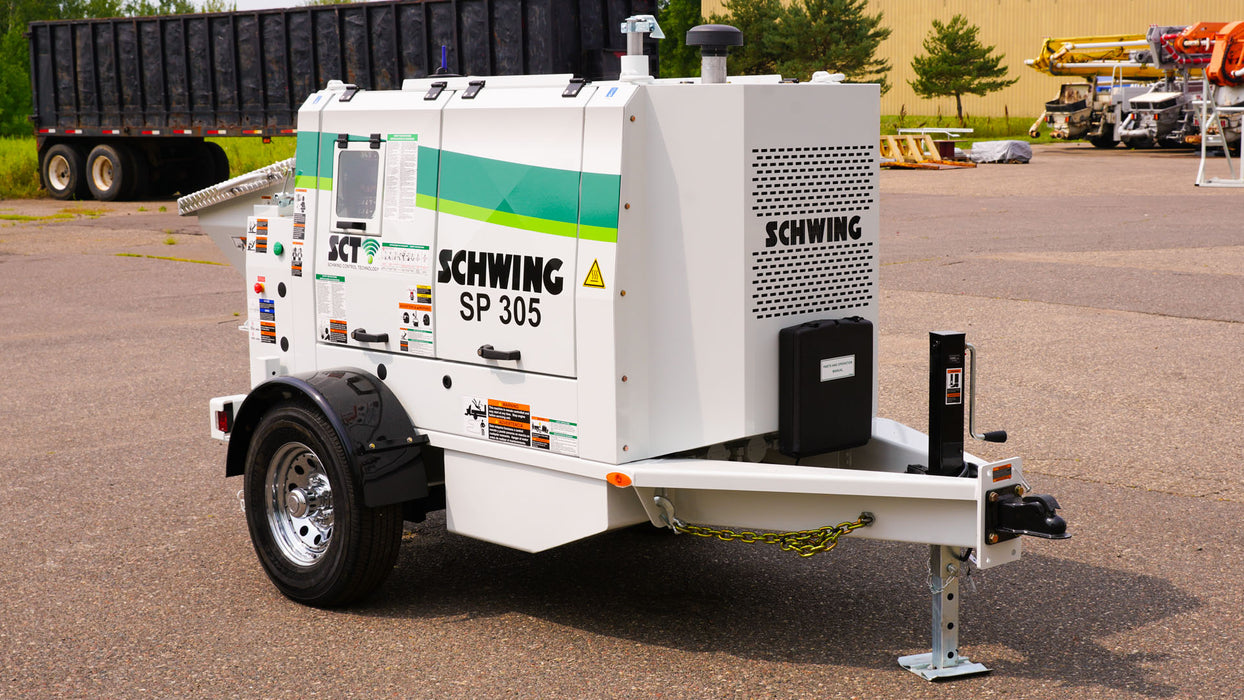

Schwing SP 305 Trailer-Mounted Concrete Pump with Tier 4 Final Engine, Front View.

Schwing SP 305 Trailer Pump | Tier 4 Final Engine | Compact and Versatile Concrete Pump

$78,280.00 - $78,280.00
$78,280.00
$78,280.00 - $78,280.00
$78,280.00

The Schwing SP 305 Trailer-Mounted Concrete Pump is a versatile and reliable solution for a wide range of concrete pumping applications. Powered by a Tier 4 Final CAT C2.2 engine, this pump delivers exceptional performance with a concrete output of up to 30 cubic yards per hour. Featuring a compact trailer design, durable construction, and advanced Schwing Control Technology (SCT), it is built for efficiency, portability, and ease of operation. The SP 305 is perfect for projects requiring precision and high-performance concrete placement.

Disclaimer:
Price listed is for the trailer-mounted pump only. Optional add-ons and accessories are not included and can be customized to meet your project requirements. Specifications and pricing are subject to change.



Specifications

Engine: Tier 4 Final / Stage V CAT C2.8B, 74.5hp
Output: 45 cubic yards per hour
Max Pressure: 1,100 PSI
Concrete Valve Type: Long Rock Valve
Concrete Cylinder: Chrome-lined, 6" x 39"
Maximum Strokes Per Minute: 32.5
Hydraulics: Twin circuit with accumulator
Fuel Tank Capacity: 33.5 gallons
Hydraulic Tank Capacity: 53 gallons
Hopper Capacity: Includes agitator assembly with hopper cover (UV8 HDPE)
Dimensions: 15' 6" (L) x 7' 4" (H) x 6' 2" (W)
Weight: 7,300 lbs
Chassis: Single axle with torsion bar and manual outriggers
Brakes: Electric
Remote Control: Radio remote (Scanreco) with 100' cable backup
Safety Features: Turn signals, fenders, and lifting frame with tie-downs

Optional Accessories:
Auto Greaser - Rock Valve – Graco: $2,900
Extended Life High-Chrome Wear Parts: $530
Hydraulic Oil Level Sensor (Electronic): $300
Hopper Vibrator (12v): $1,000
Aluminum Diamond Plate Hopper Cover: $500
Hydraulic Outrigger Legs: $3,200
Protective Covers for Outrigger Legs: $450
Tandem Axle Chassis Upgrade: $2,300
Work Light (Hopper Cover Mount): $400
Shotcrete Setup (150 bar Soft Switch & 1.3mm Nozzles): $150
Emergency Hose & Fitting Kit (PN 98494214): $1,130

Performance:
Concrete Delivery: Suitable for up to 1.5” aggregate
Max Theoretical Strokes/Minute: 32.5
Stroke Length: 39 inches
Concrete Cylinder Differential Rod Diameter: 3" rod / 6" piston
